Universal Wave Solder Fixtures

Adjustable PCB Support for High-Mix Wave Soldering

Universal Solder Fixtures provide a flexible, cost-effective solution for supporting printed circuit boards during the wave solder process. Designed for prototype, NPI, and low-to-medium volume production, these adjustable fixtures securely hold a wide variety of PCB sizes and shapes without requiring dedicated tooling for every assembly. The result is improved process consistency, faster changeovers, and reliable PCB support while minimizing tooling costs.

Universal wave solder fixture with adjustable composite frame
Watch Video

Benefits

  • Process multiple PCB sizes and shapes with a single fixture
  • Converts irregular or non-conveyor-friendly boards into compatible assemblies
  • Provides stable PCB support throughout the wave solder process
  • Adjustable design accommodates a wide range of PCB widths
  • Reduces tooling investment for prototype and low-volume production
  • Speeds product changeovers between different assemblies
  • Improves process consistency and repeatability
  • Helps protect PCBs from flexing during soldering
  • Simple setup with ergonomic operation
  • Ideal for engineering, NPI, and short production runs

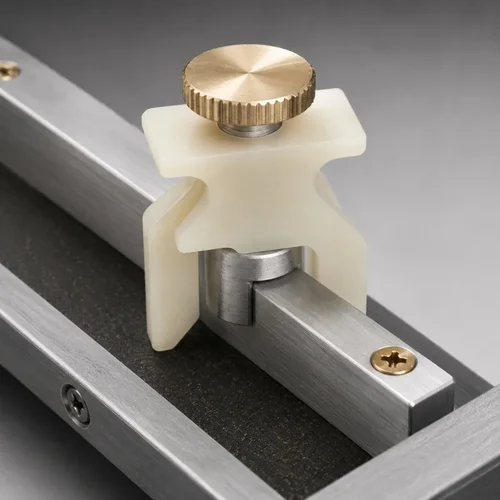

Universal wave solder fixture showing fully adjustable perimeter holddowns for board positioning

Fully adjustable perimeter holddowns permit easy placement exactly where needed

Features

  • • One-piece ESD-safe composite outer frame construction
  • • Fully adjustable perimeter hold-downs for secure PCB retention
  • • Adjustable center support bars accommodate varying PCB widths
  • • Supports odd-shaped and irregular PCB designs
  • • Durable construction suitable for lead-free wave solder environments
  • • Optional overarm support for larger or heavier circuit boards
  • • Optional titanium wear components for extended fixture life
  • • Designed for fast adjustment without specialized tools
  • • Custom-engineered configurations available for unique applications

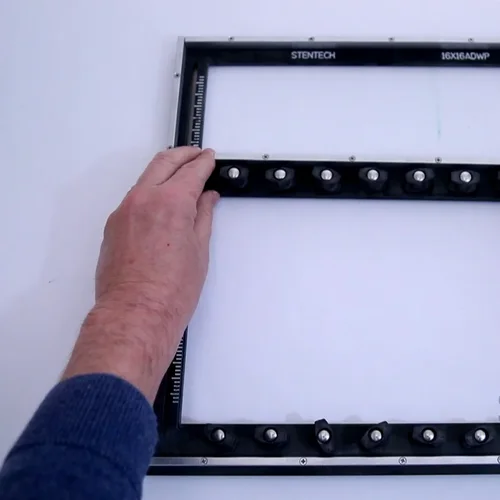

Universal wave solder pallet showing center adjustment rails and locking clips

Center bars easily adjust for PCB width

Typical Applications

  • • Prototype and new product introduction (NPI) production
  • • Low-volume and high-mix PCB assembly
  • • Wave solder processing of multiple PCB designs using a single fixture
  • • Supporting irregularly shaped or non-standard circuit boards
  • • Engineering validation and process development
  • • Contract manufacturing environments with frequent product changeovers
  • • Pilot production and pre-production builds
  • • Electronics manufacturing facilities requiring flexible, adjustable tooling
  • • PCB assemblies requiring additional support during wave solder
  • • Manufacturing environments seeking to reduce dedicated tooling inventory

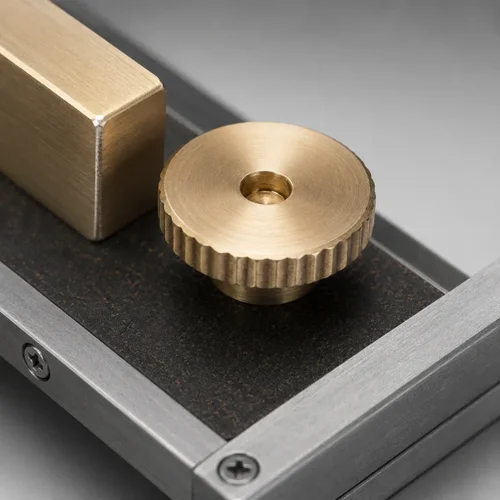

Adjustable center bars and perimeter clamps on universal wave solder fixture
