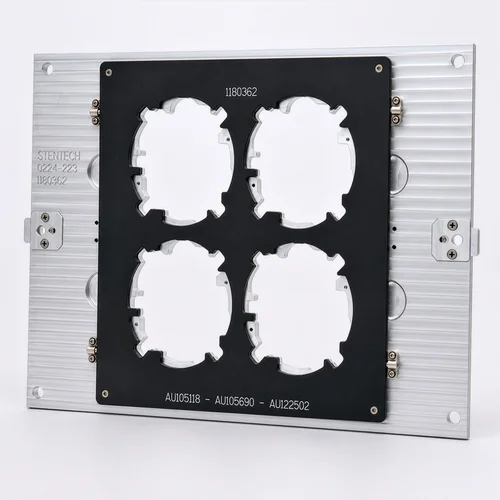

Routing Fixtures (Depanelization) are custom-engineered to securely support PCB assemblies throughout the routing process, ensuring clean, accurate board separation while protecting sensitive components. Precision-machined to match the exact PCB profile, each fixture minimizes movement, flex, and vibration in the X, Y, and Z axes to reduce mechanical stress during cutting.
Compatible with both manual and automated routing systems, these durable fixtures improve cut quality, reduce scrap, simplify setup, and deliver consistent, repeatable depanelization performance for prototype, NPI, and high-volume manufacturing environments.

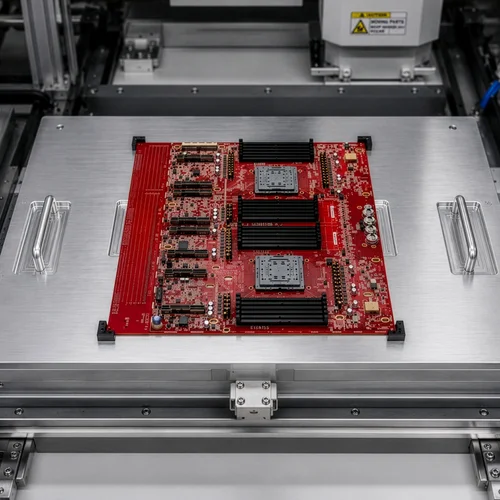

Provides rigid, repeatable PCB support during routing
Minimizes board flex, vibration, and mechanical stress
Protects sensitive components from damage during depanelization
Produces cleaner cuts with improved dimensional accuracy
Reduces scrap, rework, and router bit wear
Improves first-pass yield and overall product quality
Enables faster setup and product changeovers
Suitable for prototype, NPI, and high-volume production
Every project at Pentagon-EMS (StenTech) is custom-engineered to your exact requirements. Because no two projects are alike, our streamlined quote process helps move you from concept to production quickly, accurately, and with confidence.
