Optimize Through-Hole Assembly with Precision Wave Solder Tooling

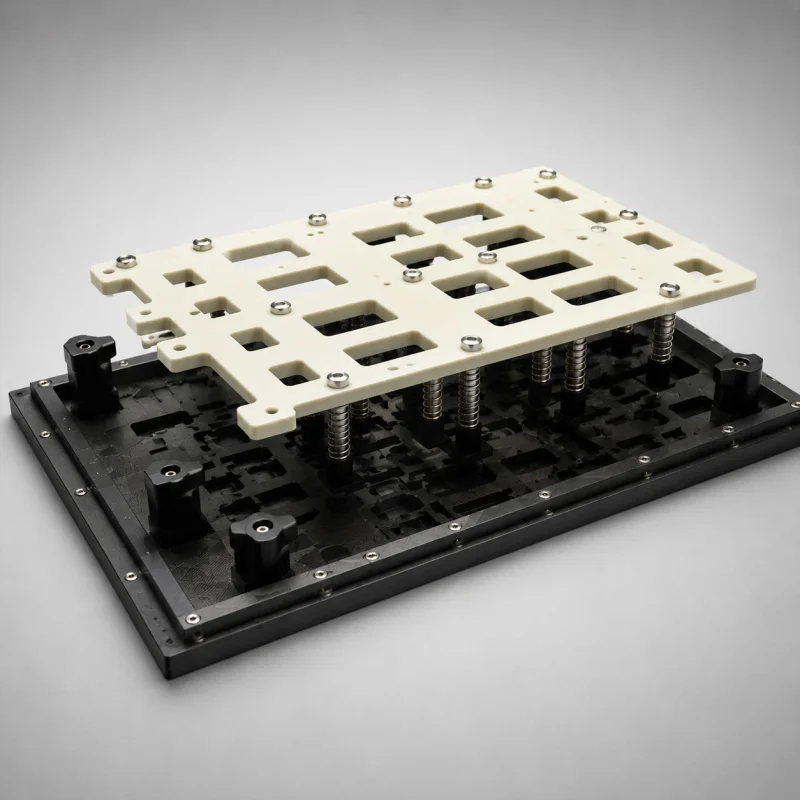

Wave soldering remains one of the most efficient and cost-effective methods for assembling through-hole components. Pentagon EMS designs and manufactures precision-engineered wave solder pallets and process tooling that protect sensitive assemblies, improve solder quality, and deliver consistent, repeatable production results.
Built for today's lead-free manufacturing environments, our tooling increases yields, minimizes defects, and enhances overall process reliability.

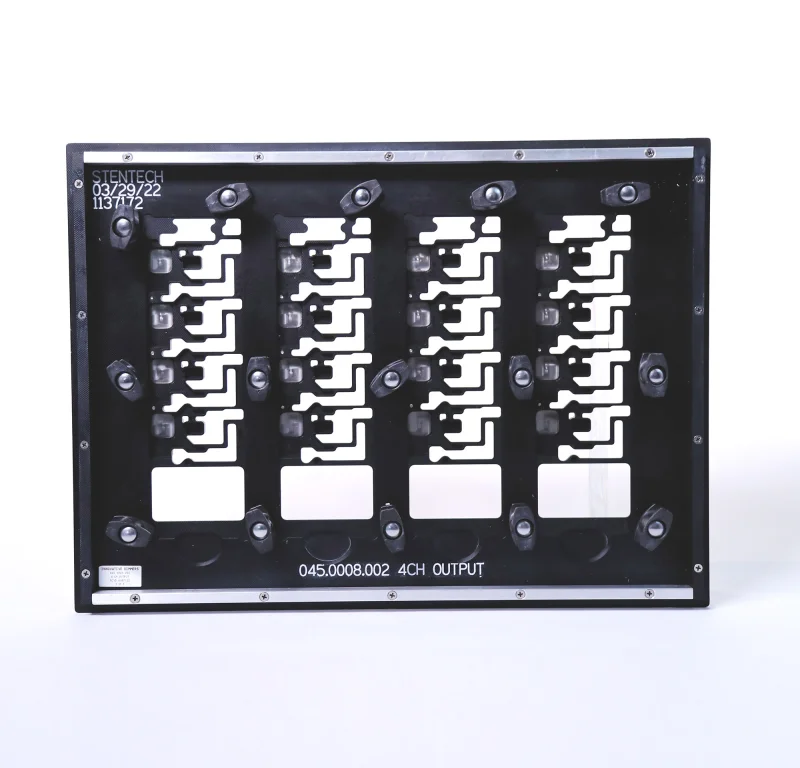

Selective Solder Pallets are custom designed to support the PCB while exposing only the required through-hole locations to the solder wave. Sensitive SMT components, gold fingers, tooling holes, and other critical board features remain fully protected, allowing manufacturers to achieve high-quality solder joints with reduced rework and greater process consistency.
Engineered from durable ESD-safe composite materials, each pallet is optimized for maximum solder flow and long production life.
Learn More

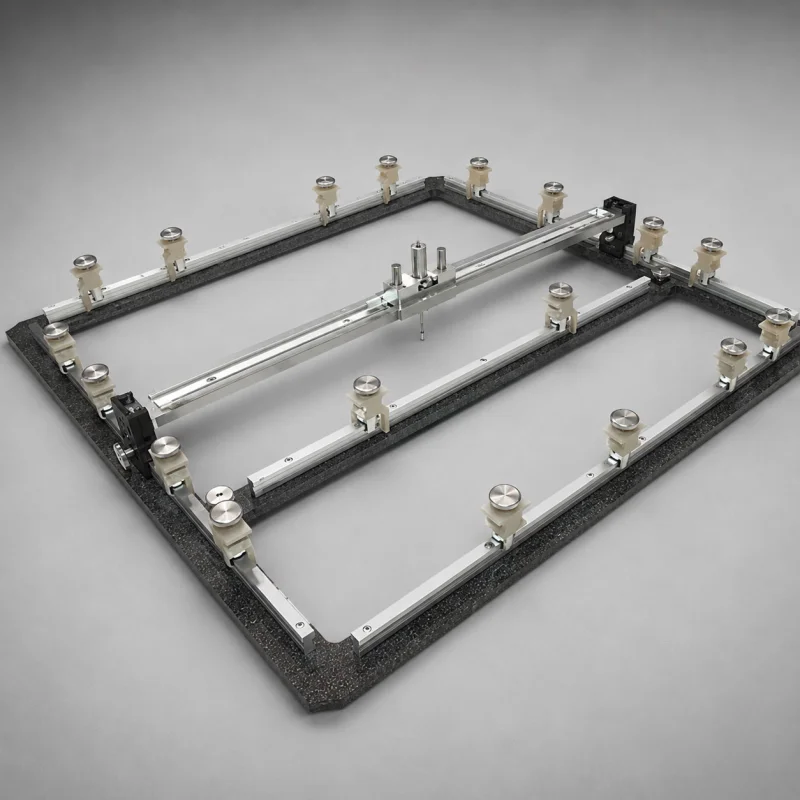

Universal Solder Pallets provide a flexible solution for manufacturers running multiple PCB designs or low-volume production. Adjustable center rails and perimeter supports accommodate a wide variety of board sizes and shapes while providing the stability needed for reliable wave solder processing.
Ideal for prototypes, NPI, and high-mix manufacturing environments, Universal Solder Pallets reduce tooling costs while maintaining excellent process repeatability.
Learn More
Every project at Pentagon-EMS (StenTech) is custom-engineered to your exact requirements. Because no two projects are alike, our streamlined quote process helps move you from concept to production quickly, accurately, and with confidence.
