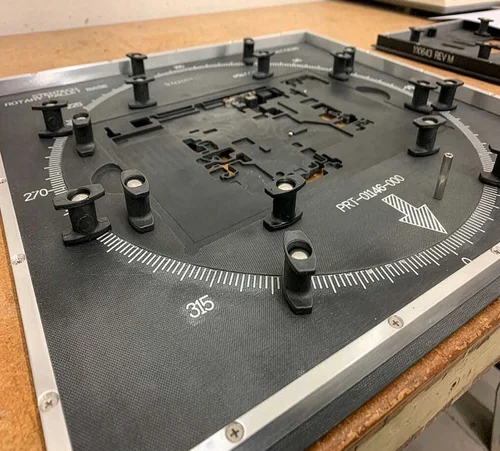

Rotary Wave Solder Fixtures provide precise control over PCB presentation during wave soldering, helping optimize solder quality across a wide range of assemblies. The adjustable rotating fixture allows the board angle to be set in 5° increments, improving solder drainage and reducing defects such as bridging, skipping, and excessive solder accumulation.

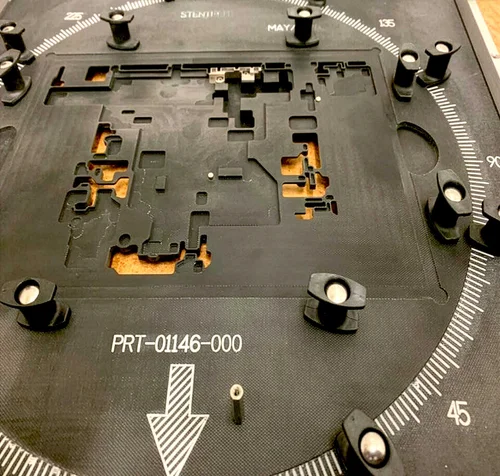

Engineered wave pockets and solder channels promote consistent solder flow, while a durable base accepts interchangeable rotating plates for multiple PCB designs, reducing tooling costs and improving manufacturing flexibility. Optional features further enhance durability, repeatability, and process control for demanding production environments.
Adjustable PCB angle optimizes solder flow and drainage
Reduces bridging, solder skipping, and rework
Improves solder joint consistency and first-pass yield
Supports multiple PCB designs with interchangeable rotating plates
Lowers tooling costs while increasing production flexibility
Provides stable PCB support throughout the wave solder process
Minimizes downtime during product changeovers
Suitable for prototype through high-volume production
Every project at Pentagon-EMS (StenTech) is custom-engineered to your exact requirements. Because no two projects are alike, our streamlined quote process helps move you from concept to production quickly, accurately, and with confidence.
