Precision PCB Support for Consistent, Repeatable Screen Printing

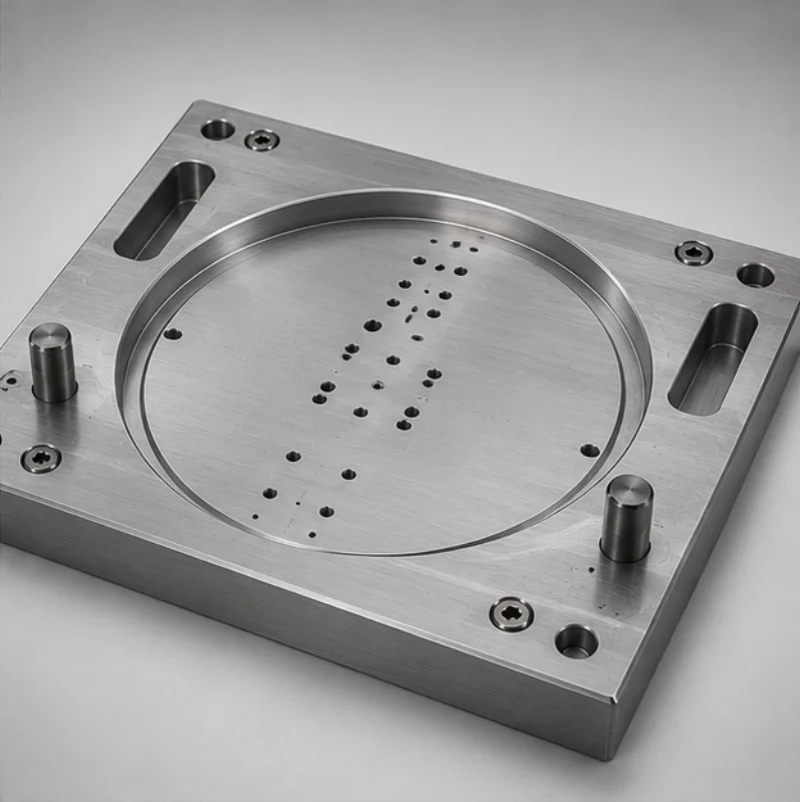

Accurate solder paste deposition begins with proper PCB support. Pentagon EMS Printer Plates are custom engineered to provide rigid, stable support throughout the screen printing process, eliminating board flex and ensuring consistent stencil contact across the entire assembly. Designed specifically for your PCB and printing equipment, our Printer Plates improve print accuracy, reduce variation, and help increase first-pass yields.

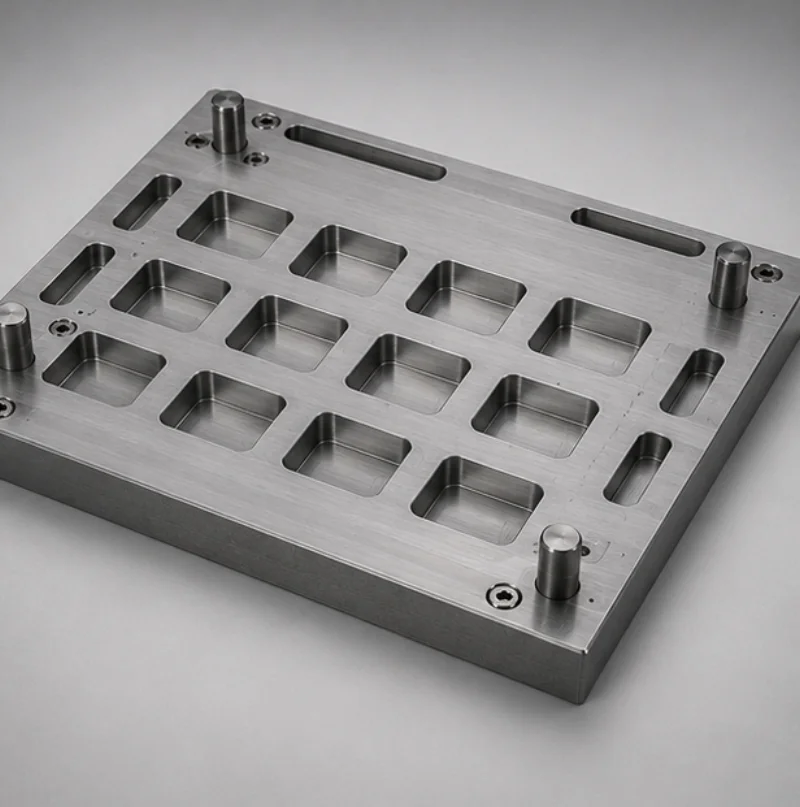

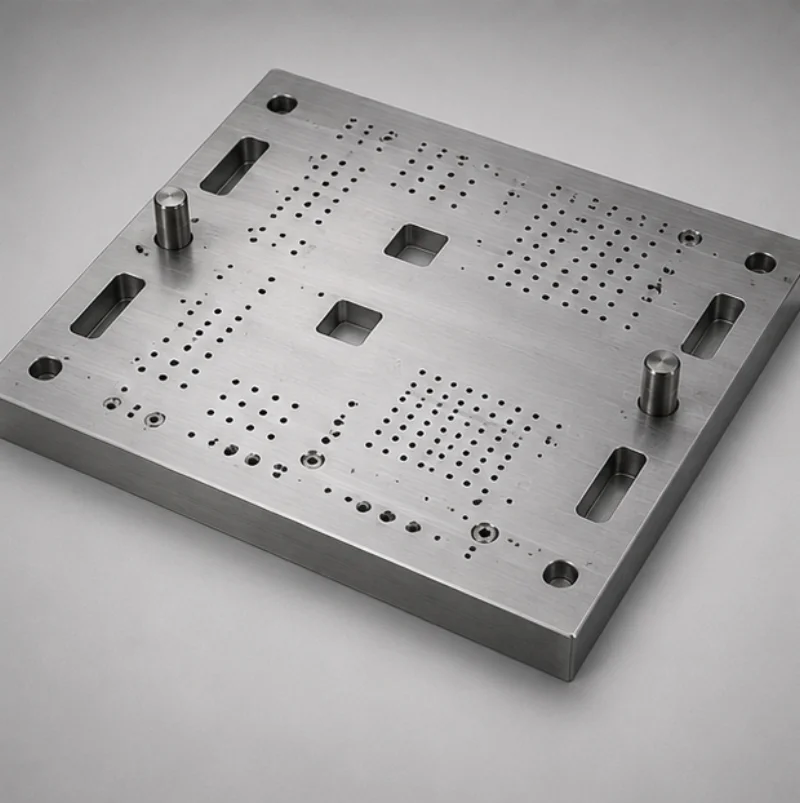

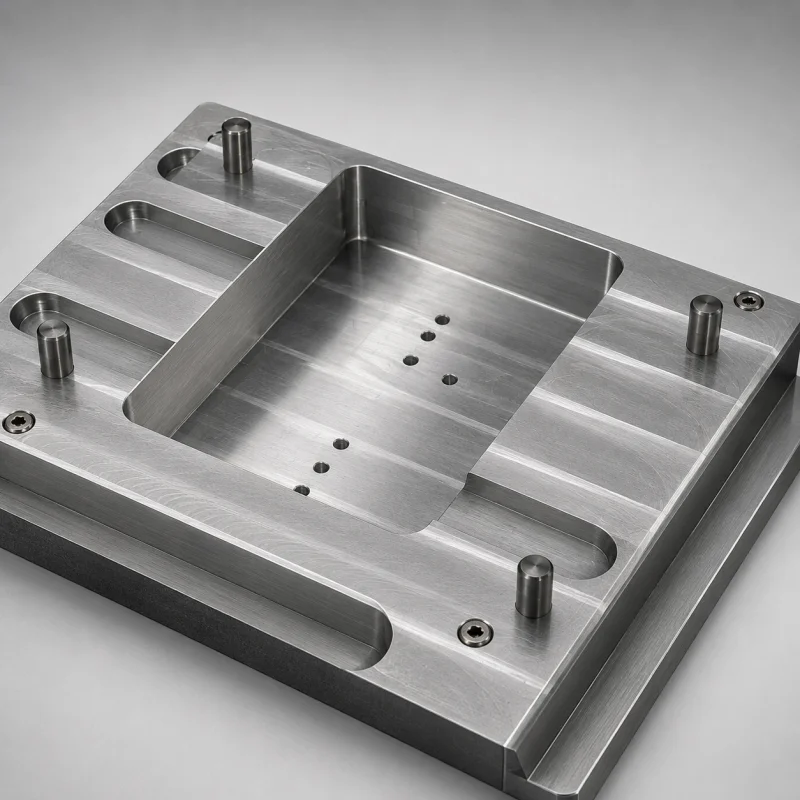

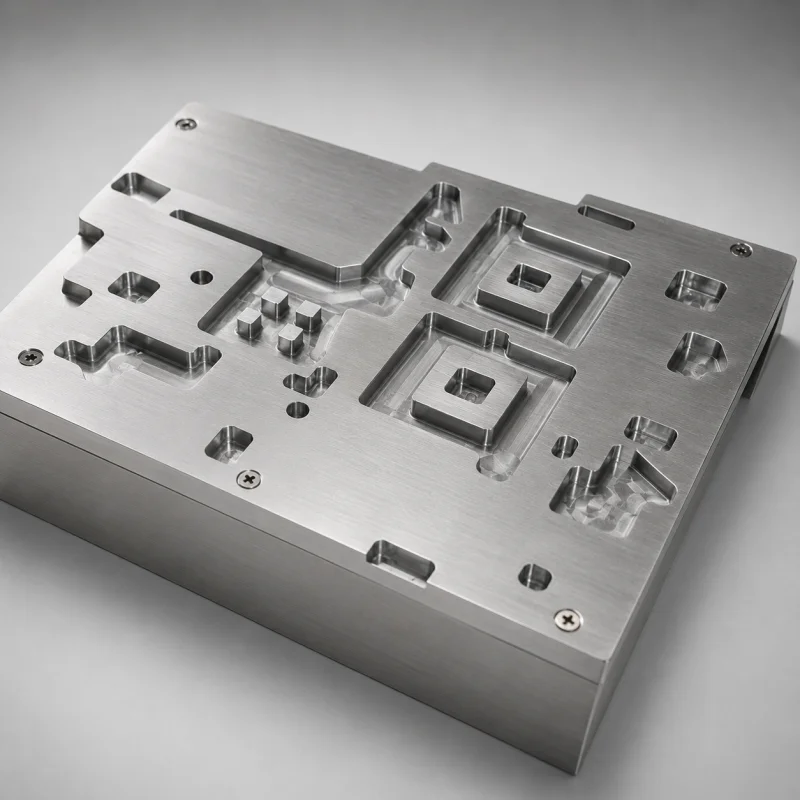

Manufactured from high-performance ESD-safe composite materials or precision-machined aluminum, they deliver long service life and dependable performance in demanding SMT production environments. Vacuum-compatible designs are also available for applications requiring enhanced board stability and process control.
Provides maximum PCB support during solder paste printing
Improves print accuracy and repeatability
Reduces PCB flex and print variation
Increases first-pass yields and overall process consistency
Minimizes defects caused by inadequate board support
Improves production efficiency and manufacturing reliability
Every project at Pentagon-EMS (StenTech) is custom-engineered to your exact requirements. Because no two projects are alike, our streamlined quote process helps move you from concept to production quickly, accurately, and with confidence.
