Precision PCB Protection and Support for Wave Soldering
Selective Wave Solder Fixtures are precision-engineered to securely support and protect printed circuit boards throughout the wave soldering process. Designed to expose only the areas requiring solder while shielding sensitive components and critical board features, these fixtures improve solder quality, reduce defects, and deliver consistent, repeatable manufacturing results. Custom-built for each application, they provide the stability, thermal protection, and process control required for reliable high-volume PCB assembly.
Securely supports PCBs throughout the entire wave solder process

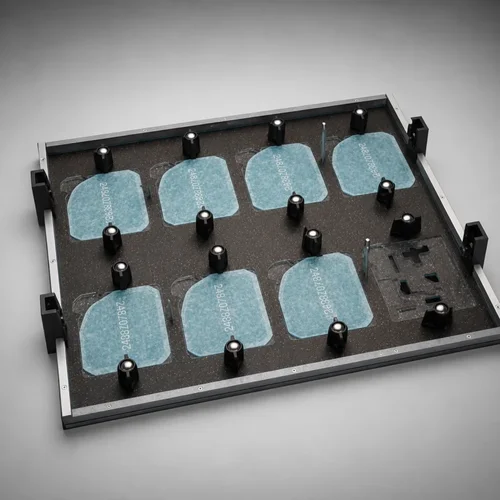

Masks SMT components and critical board areas from molten solder
Protects heat-sensitive regions during soldering
Enables odd-shaped and non-standard PCBs to run through conveyor systems
Prevents component movement during wave solder
Maintains accurate component alignment for improved solder quality
Eliminates many manual masking and gluing operations
Improves first-pass yield and overall process repeatability
Reduces solder bridging, skips, and other common solder defects
Provides safe, ergonomic handling for operators

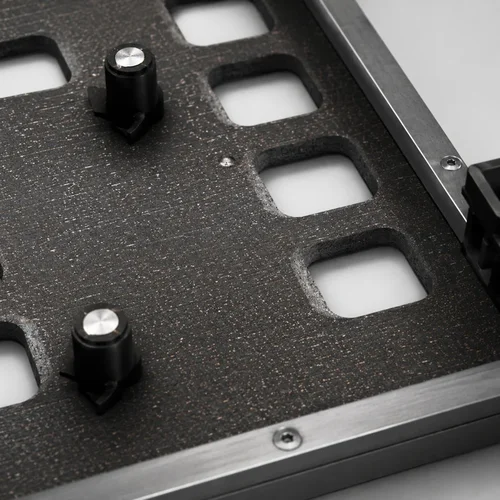

Maximum possible “Knife Edge†beveling of fixture openings, provides the best possible solder flow to component leads

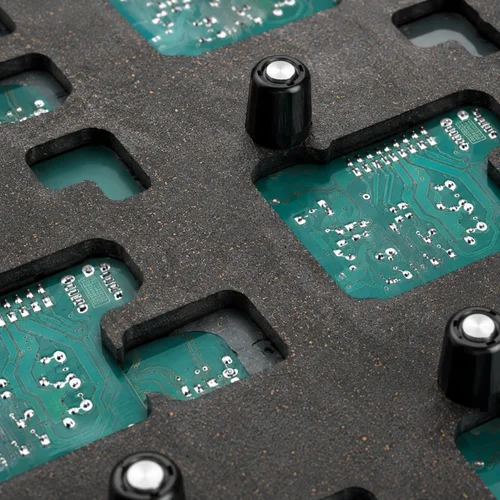

Wave Pockets and Solder Channels promote better solder flow

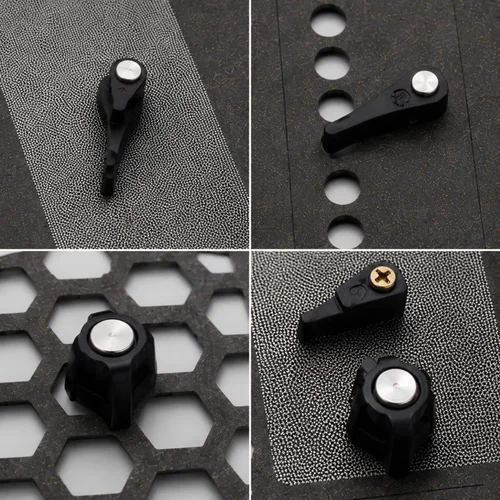

Ergonomic PCB and component holddowns
Every project at Pentagon-EMS (StenTech) is custom-engineered to your exact requirements. Because no two projects are alike, our streamlined quote process helps move you from concept to production quickly, accurately, and with confidence.
