Reliable Board Retention for Wave Soldering and Assembly
Reliable board retention is essential for consistent PCB assembly. Our comprehensive range of PCB and component holddowns is engineered to securely retain boards and components throughout wave solder, screen printing, reflow, inspection, and other manufacturing processes. Our spring-loaded designs apply consistent holding force while allowing quick loading and unloading, helping improve process stability, reduce board movement, and protect critical components. Standard and custom holddown solutions are available to accommodate virtually any PCB configuration, component profile, or manufacturing application.
Improves PCB stability throughout manufacturing processes
Prevents board movement, lifting, and vibration during processing
Protects sensitive components from shifting or damage
Reduces defects and improves overall process repeatability
Enables faster setup and changeover with easy-to-use spring-loaded designs
Available in standard configurations or custom-engineered solutions for unique applications

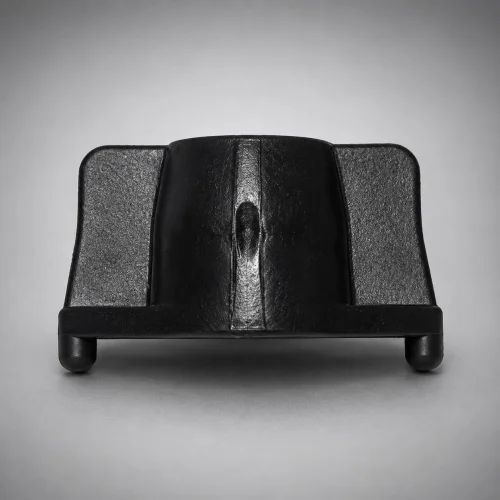

Rotating, spring-loaded PCB holddown. The standard for general purpose use.

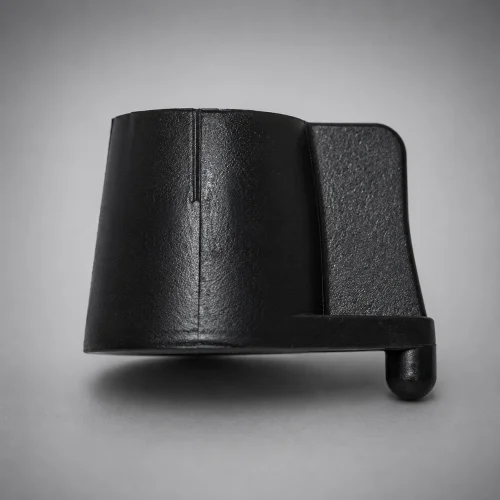

Rotating, spring-loaded PCB holddown. For use when space is at a premium.
Rotating, spring-loaded PCB holddown. For use when a lower profile is desired.

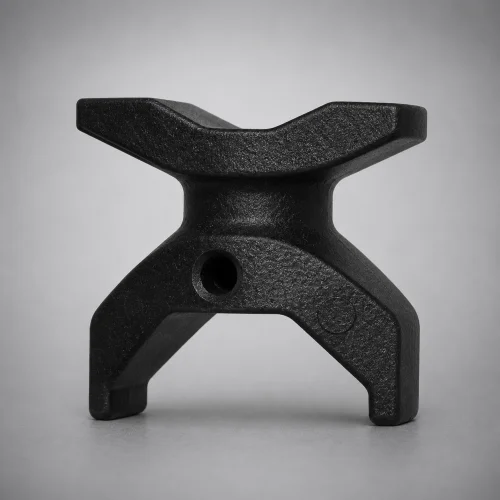

Rotating, spring-loaded PCB holddown. Ergonomic, pulling grip design.

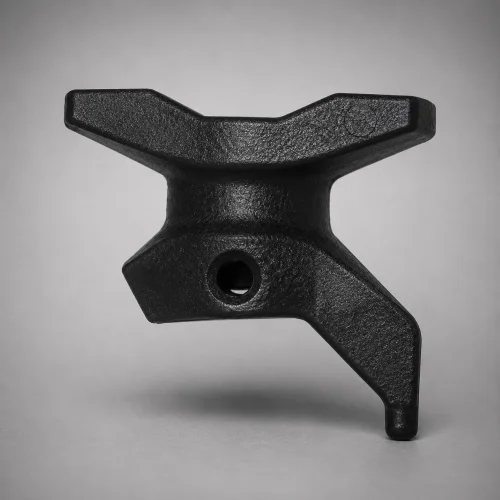

Rotating, spring-loaded PCB holddown. Single sided version of the XBALD.

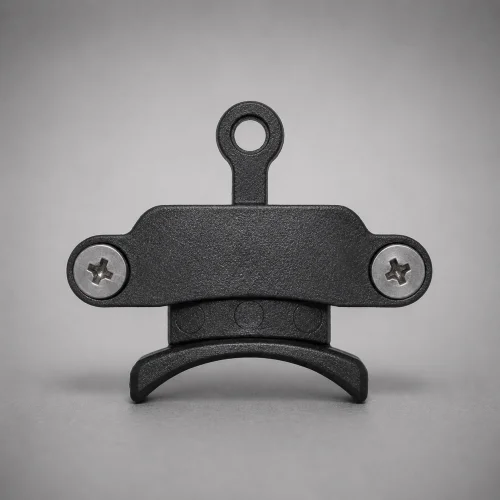

Spring-loaded, detent style PCB holddown. Useful for quick change of PCB.
Spring-loaded, flush mount design. Applies pulling force to PCB when tooling pin holes are available.

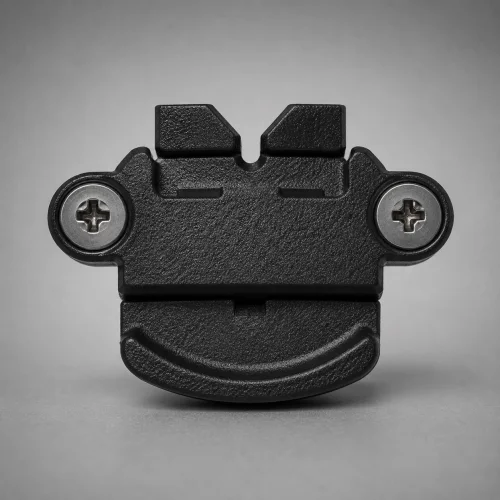

Spring-loaded, flush mount design. Applies pushing force to PCB when tooling pin holes are not available.
Spring-loaded, applies downward retaining force to component to hold it securely in place through wave solder. Configurable to accommodate different component heights.
Every project at Pentagon-EMS (StenTech) is custom-engineered to your exact requirements. Because no two projects are alike, our streamlined quote process helps move you from concept to production quickly, accurately, and with confidence.
