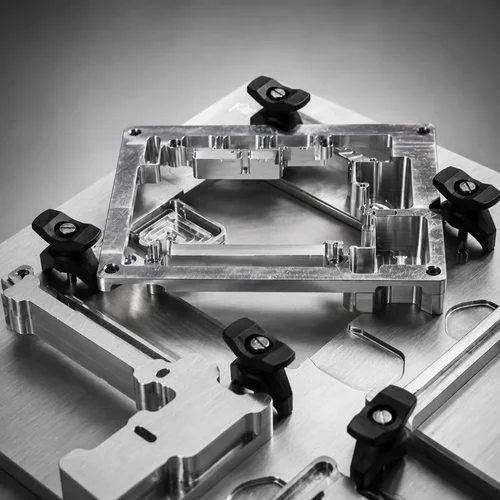

Precision Masking Fixtures to Streamline Coating Operations

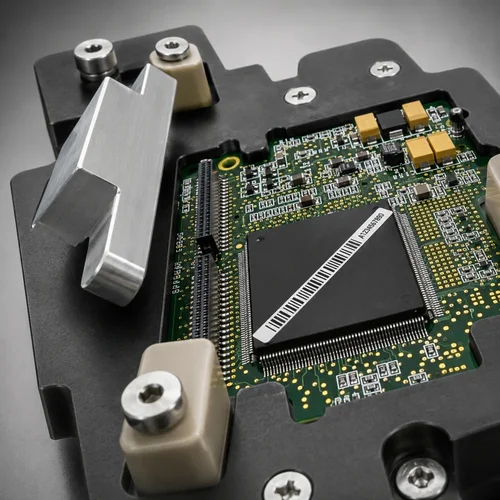

Conformal coating requires precise masking to protect connectors, test points, switch contacts, grounding locations, and other critical PCB features from overspray. Manual masking is labor-intensive, inconsistent, and can slow production. Pentagon EMS Conformal Coating Tooling provides a fast, repeatable, and highly accurate masking solution that streamlines the coating process while improving product quality and throughput. Each fixture is custom engineered to securely support the PCB while exposing only the required areas for coating.
Eliminates time-consuming manual masking
Processes multiple PCBs simultaneously for higher throughput
Improves coating consistency and process reliability
Reduces setup time and operator involvement

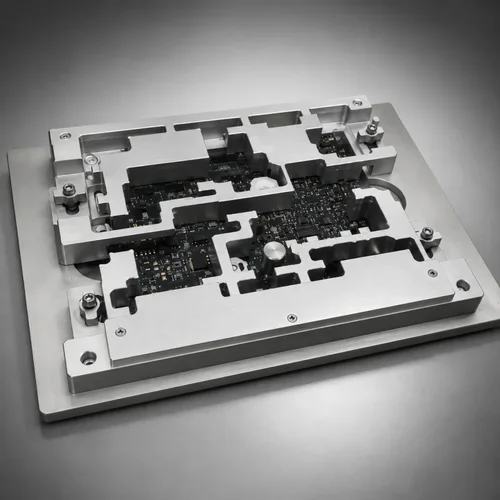

Protects critical components and keep-out areas from overspray
Simplifies PCB handling before and after coating
Delivers repeatable, high-quality production results
Lowers overall manufacturing costs by increasing process efficiency
Every project at Pentagon-EMS (StenTech) is custom-engineered to your exact requirements. Because no two projects are alike, our streamlined quote process helps move you from concept to production quickly, accurately, and with confidence.
