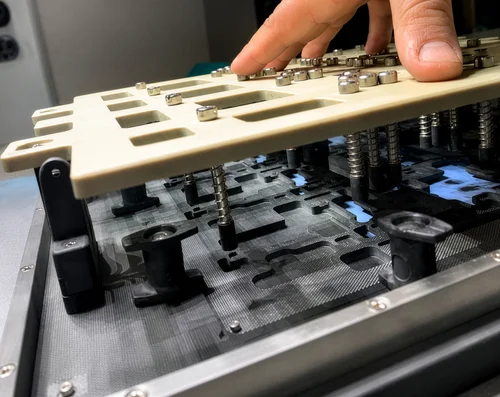

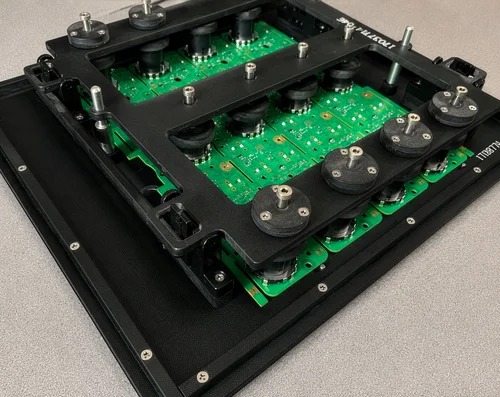

Alignment Hold-Down Canopies securely position and retain components during soldering to ensure accurate alignment with mating parts and downstream assembly operations. Custom-engineered for each application, these fixtures mechanically secure light, tall, or unstable components to prevent lifting, shifting, or misalignment throughout the soldering process.
Designed for durability and ease of use, Hold-Down Canopies improve assembly repeatability, reduce rework, and maintain critical dimensional accuracy. Available in a wide range of standard and custom configurations, they deliver reliable, high-quality results for prototype, NPI, and high-volume manufacturing environments.
Maintains precise component alignment during soldering
Prevents component lifting, movement, and misalignment
Improves solder joint quality and assembly consistency
Reduces scrap, rework, and operator intervention
Ensures accurate alignment with mating assemblies
Supports first-pass yield and process repeatability
Increases production efficiency and product quality
Suitable for prototype through high-volume manufacturing
Every project at Pentagon-EMS (StenTech) is custom-engineered to your exact requirements. Because no two projects are alike, our streamlined quote process helps move you from concept to production quickly, accurately, and with confidence.
