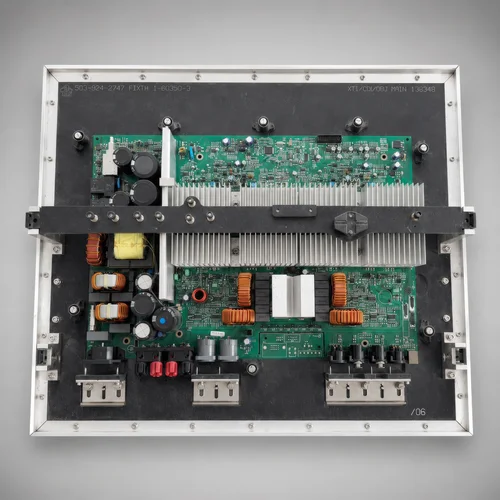

Overarm Bars provide secure PCB retention and precise component control during wave soldering and other PCB assembly processes. Custom-engineered for each application, they hold and orient topside components, secure the PCB within the fixture, and minimize board warpage on larger assemblies.

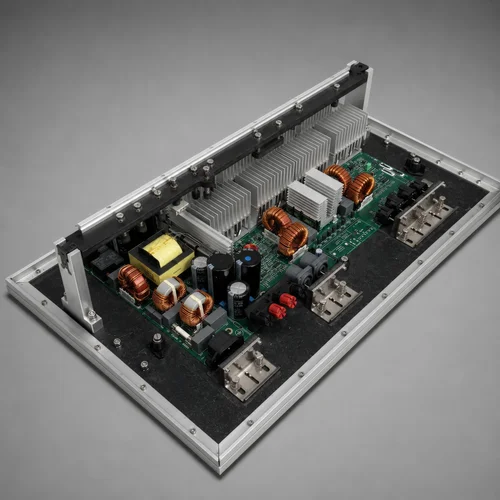

Available in hinged or detachable configurations, Overarm Bars feature spring-loaded latching mechanisms for fast, repeatable installation. Detachable designs are keyed to ensure correct orientation, while custom contact pads accommodate irregular component geometries. The result is improved process stability, faster setup, and more consistent, repeatable manufacturing performance.
Securely holds topside components throughout processing
Reduces PCB bow, sag, and warpage on large assemblies
Improves solder quality and process repeatability
Reduces setup time for complex assemblies
Prevents component movement and misalignment
Provides a tight seal to minimize solder flooding around fixture openings
Improves first-pass yield while reducing rework
Increases overall manufacturing efficiency and consistency
Every project at Pentagon-EMS (StenTech) is custom-engineered to your exact requirements. Because no two projects are alike, our streamlined quote process helps move you from concept to production quickly, accurately, and with confidence.
