AOI / 5DX Fixtures

Precision Positioning for Accurate Automated Inspection

AOI / 5DX Fixtures are engineered to securely position printed circuit boards during automated optical inspection (AOI) and X-ray (5DX) inspection processes. By eliminating board movement, skewing, and flex, these fixtures improve inspection accuracy, reduce false failures, and deliver consistent, repeatable inspection results across prototype and high-volume production environments.

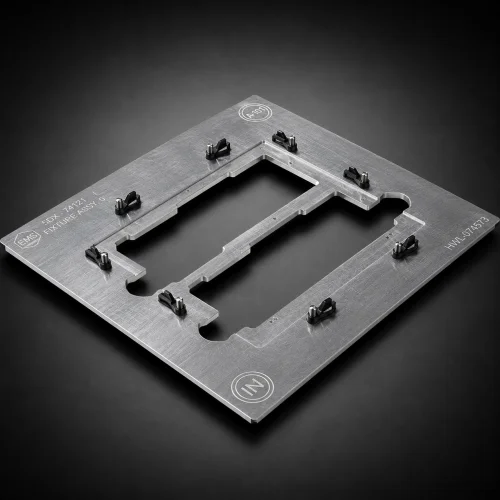

AOI / 5DX Fixture

Benefits

  • Prevents false failures caused by PCB movement or skewing
  • Ensures repeatable inspection results for odd-shaped PCBs
  • Supports boards with components positioned close to the PCB edge
  • Improves inspection accuracy and first-pass yield
  • Reduces unnecessary rework and operator intervention
  • Provides stable, repeatable positioning throughout the inspection process
  • Suitable for both prototype and production applications

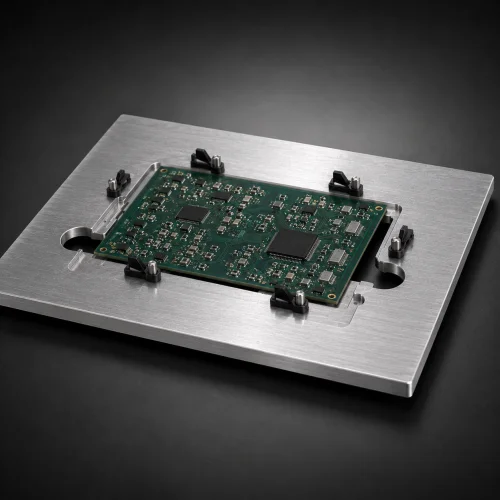

AOI / 5DX Fixture Benefits

Features

  • Low-profile PCB hold-downs designed to avoid interference with AOI and X-ray clearance requirements
  • Precision location using tooling pins or PCB edge referencing
  • Available in dedicated or universal fixture configurations
  • Manufactured from durable aluminum or ESD-safe composite materials
  • Custom engineered to suit specific board geometries and inspection equipment
  • Precision-machined for long service life and repeatable performance

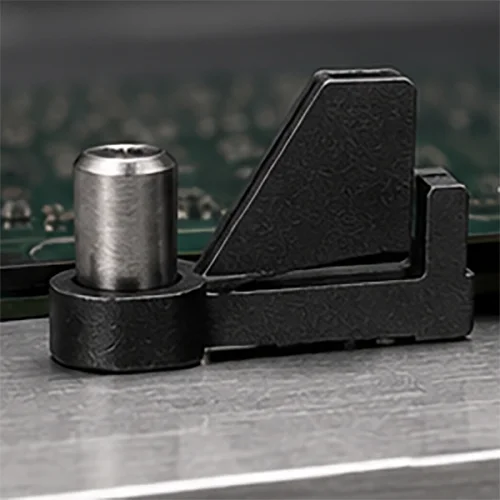

AOI / 5DX Fixture Features

Applications

  • Automated Optical Inspection (AOI) systems
  • X-ray (5DX) Inspection systems
  • High-density SMT assembly line quality checks
  • Multi-layer PCB testing and validation
  • High-mix, low-volume inspection runs
  • Flexible and rigid-flex circuit inspection
