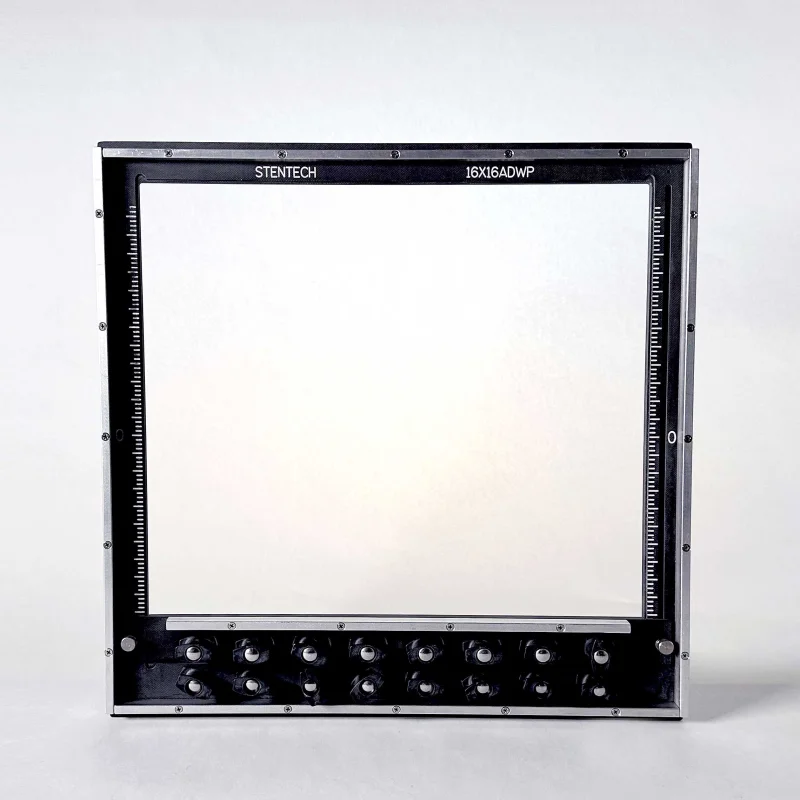

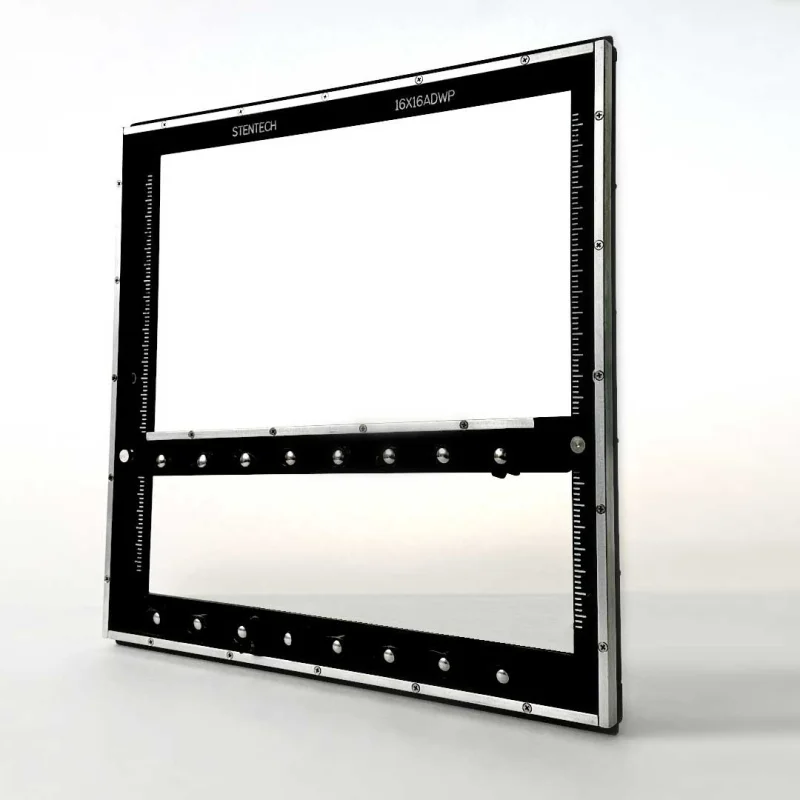

Universal Process Carriers provide a flexible, cost-effective solution for manufacturers processing multiple PCB sizes and configurations through the SMT assembly process. Designed to accommodate a wide range of board dimensions with a single fixture, these carriers eliminate the need for dedicated tooling while maintaining the board support, stability, and repeatability required for high-quality production.
Engineered for use through screen printing, component placement, and reflow, Pentagon EMS Universal Process Carriers feature adjustable support systems and low-profile holddowns that securely retain assemblies without interfering with manufacturing operations. The result is improved throughput, reduced tooling investment, and greater production flexibility for prototype, low-volume, and mixed-product manufacturing environments.
Process multiple PCB sizes and shapes using a single fixture
Reduce tooling costs and fixture inventory requirements
Accommodate product changeovers quickly and efficiently
Support PCB assemblies with components located near the board edge
Maintain accurate and repeatable board positioning throughout the SMT process
Run through printing, placement, and reflow without operator intervention
Improve manufacturing flexibility and throughput
Reduce setup time between production runs

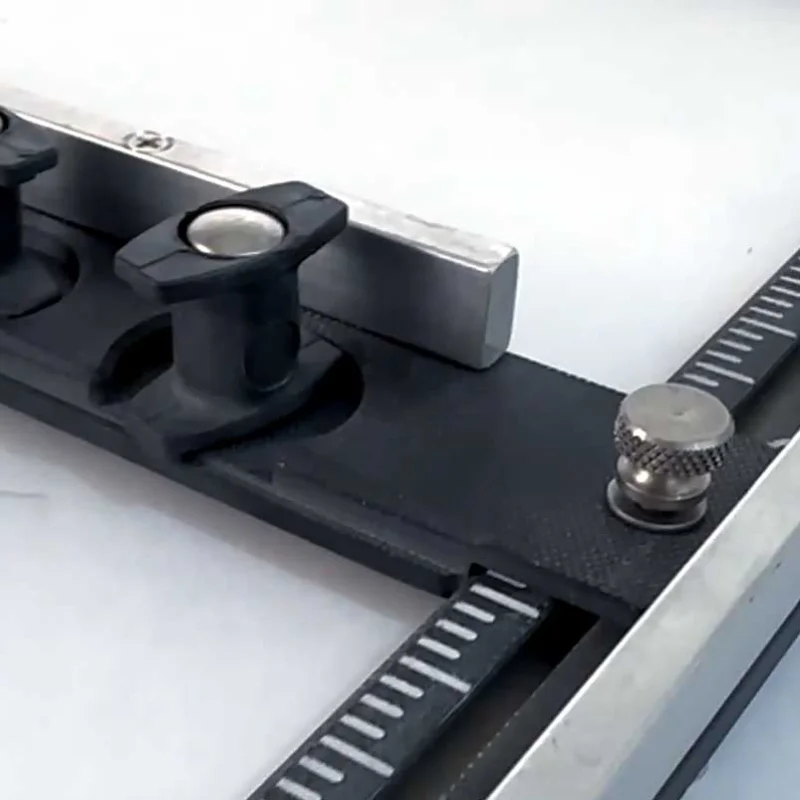

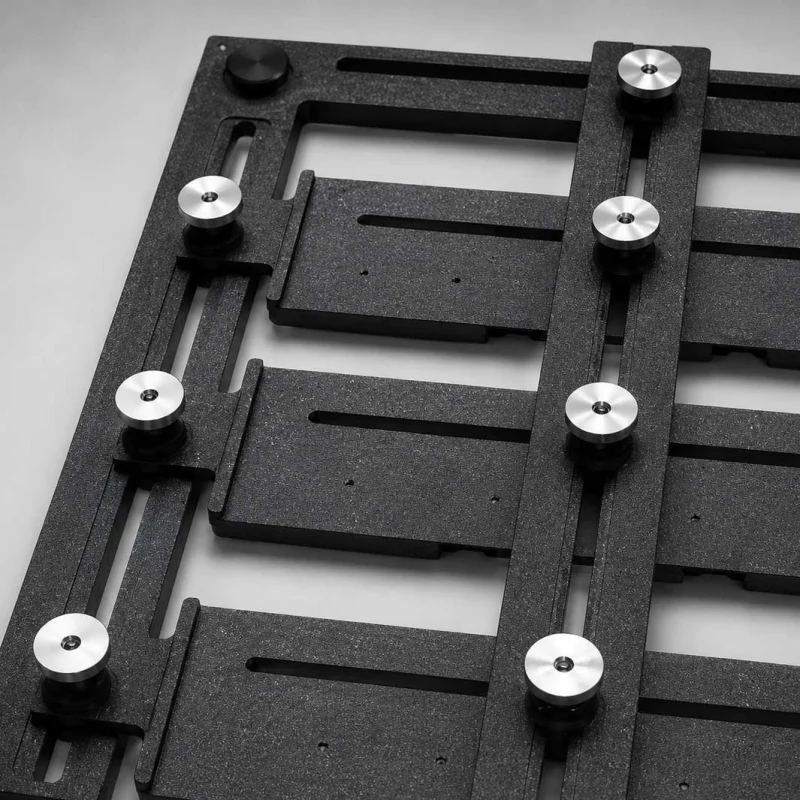

Adjusts easily to PCB width

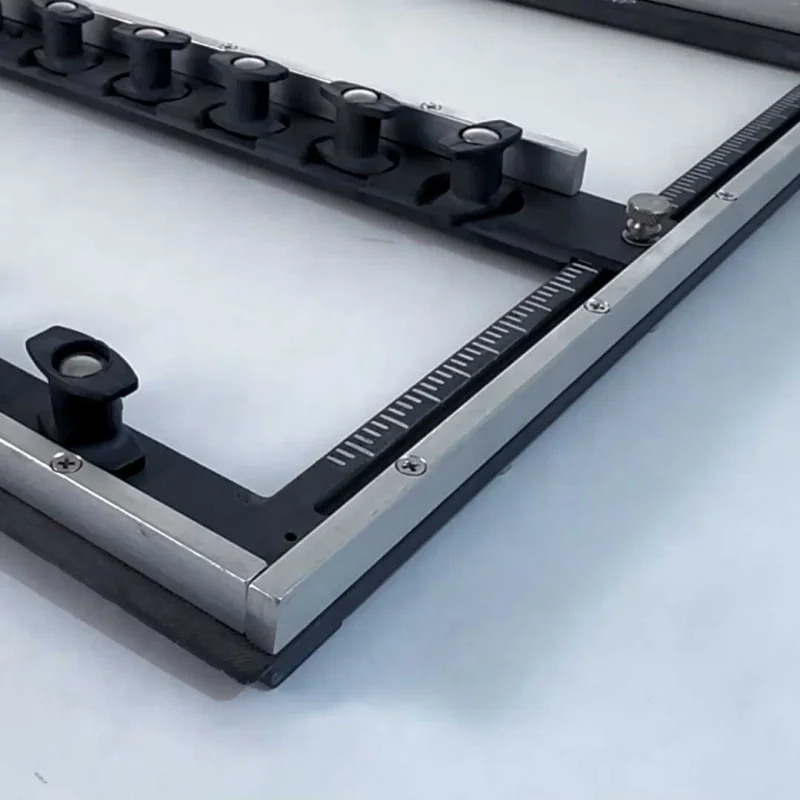

Flush holddowns will not interfere with screening operations
Every project at Pentagon-EMS (StenTech) is custom-engineered to your exact requirements. Because no two projects are alike, our streamlined quote process helps move you from concept to production quickly, accurately, and with confidence.
