Lead Trim Plates

Precision Lead Preparation for Reliable Through-Hole Assembly

Lead Trim Plates are a critical part of the through-hole PCB assembly process, delivering clean, accurate trimming of component leads before soldering. Pentagon EMS designs and manufactures custom lead trim plates that integrate seamlessly with your existing equipment, providing OEM-compatible performance with shorter lead times, lower costs, and application-specific customization.

Lead Trim Plate

Benefits

  • Faster lead times than original equipment manufacturers (OEMs)
  • Lower tooling costs without compromising precision or durability
  • Custom-designed to fit your existing lead trimming equipment
  • Enables quick changeovers for improved production efficiency
  • Produces clean, consistent lead trimming for improved solder quality
  • Reduces maintenance and downtime with long-life tooling construction
  • Supports repeatable, high-volume manufacturing processes

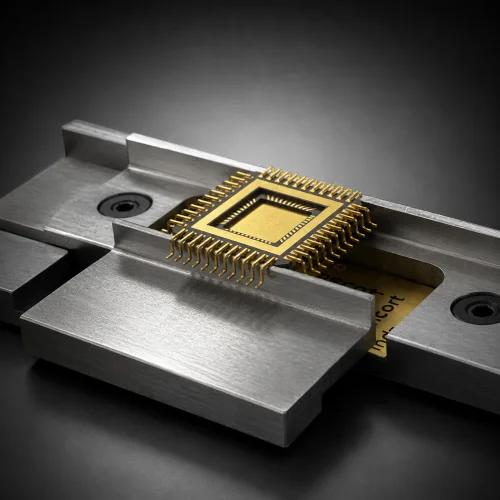

Lead Trim Plate Benefits

Features

  • Manufactured from heat-treated, precision-ground tool steel for exceptional durability
  • Countersunk lead holes guide component leads into position for accurate trimming
  • Custom engineered to match existing machines and production requirements
  • Optional customizations available, including lead forming, component height accommodation, and specialized trimming configurations
  • Precision machining ensures consistent cutting performance and long service life

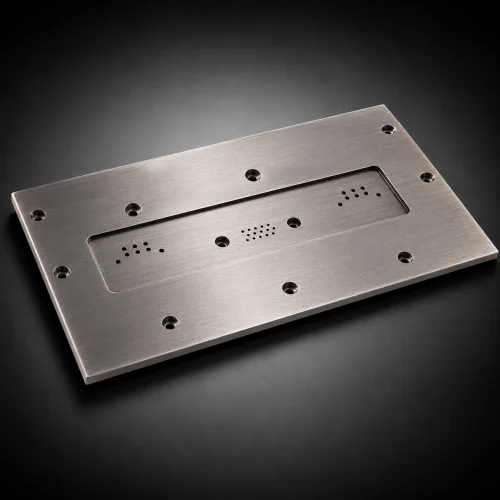

Lead Trim Plate Features

Applications

  • Through-hole PCB assembly
  • High-volume electronics manufacturing
  • Automated lead trimming systems
  • Mixed-technology PCB production
  • Contract electronics manufacturing (EMS)
  • Aerospace, defense, medical, industrial, and automotive electronics
  • Custom production lines requiring OEM-compatible replacement tooling
