Precision Tooling for Accurate, Reliable Press Fit Assembly

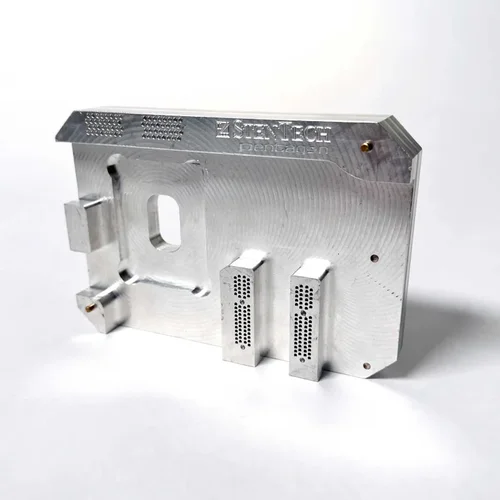

Pentagon EMS (StenTech) designs and manufactures precision Press Fit Process Tooling that provides the rigid support and precise alignment required for reliable connector insertion. Our tooling ensures insertion forces are evenly distributed across the PCB, protecting both the circuit board and the connector while delivering consistent, repeatable assembly results. Engineered for durability, accuracy, and fast turnaround, our Press Fit solutions offer the same performance as OEM tooling at a significantly lower cost and with substantially shorter lead times.

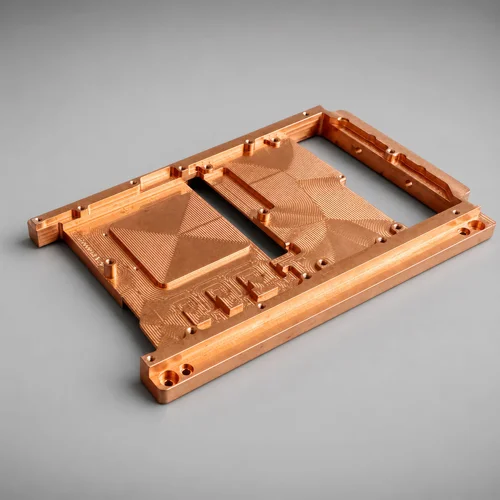

Support Plates provide the stable foundation required during the press fit process, preventing PCB flexing while distributing insertion forces evenly across the assembly. Each plate is custom-engineered to support the specific board geometry, ensuring reliable connector seating while protecting delicate circuitry from damage.
Learn More

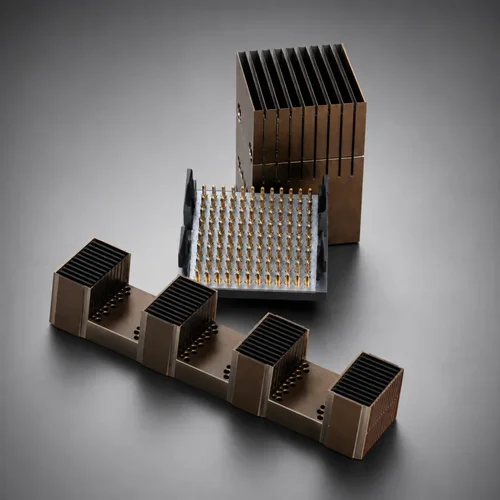

Top Tools are precision-machined insertion fixtures designed to accurately engage and align press fit connectors during installation. Custom-built for each connector style, they deliver uniform insertion force for consistent seating while reducing the risk of connector or PCB damage. Pentagon EMS Top Tools are typically available at a fraction of the cost of component manufacturer tooling, with significantly shorter lead times.
Learn More
Every project at Pentagon-EMS (StenTech) is custom-engineered to your exact requirements. Because no two projects are alike, our streamlined quote process helps move you from concept to production quickly, accurately, and with confidence.
