Functional Test Fixtures

Reliable PCB Positioning for Accurate Functional Testing

Functional Test Fixtures are custom-engineered to accurately locate, secure, and support printed circuit board assemblies throughout functional testing. Designed to improve test repeatability and production efficiency, each fixture is tailored to your product, ensuring reliable electrical contact, consistent positioning, and fast, repeatable operation from prototype through high-volume manufacturing.

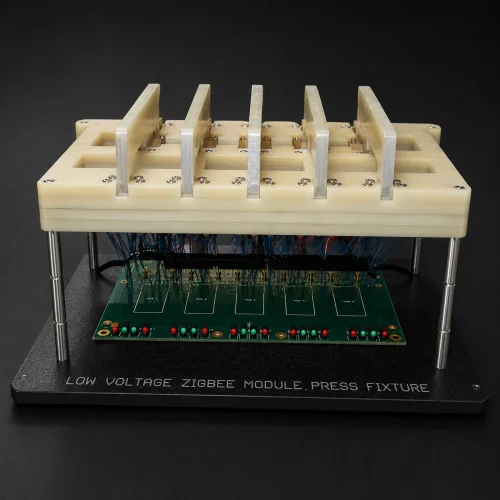

Functional Test Fixture

Benefits

  • Accurately locates and secures PCBs for consistent testing
  • Improves test repeatability and reliability
  • Reduces setup time and operator variability
  • Increases throughput in production environments
  • Supports both prototype and high-volume manufacturing
  • Minimizes handling errors and the risk of PCB damage
  • Custom-designed to match your product and test requirements

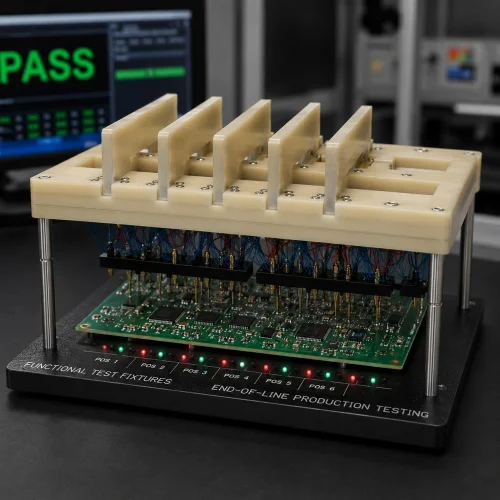

Functional Test Fixture Benefits

Features

  • Custom-engineered for each specific application
  • Available with manual toggle clamps for low-volume production
  • Pneumatic actuation options for high-volume automated testing
  • Designed for individual PCB designs or entire product families
  • Precision-machined construction for long-term accuracy and durability
  • Unlimited customization options based on test requirements, connectors, and fixture interfaces
Functional Test Fixture Features

Applications

  • Functional PCB Testing
  • In-Circuit Test (ICT) Support
  • End-of-Line Production Testing
  • Prototype and NPI Validation
  • Manufacturing Quality Assurance
  • High-Volume Automated Test Systems
  • Low-Volume Manual Test Stations
  • Electronics Manufacturing and Contract Assembly
